BioTec ScreenMatic² Set 60000 OC

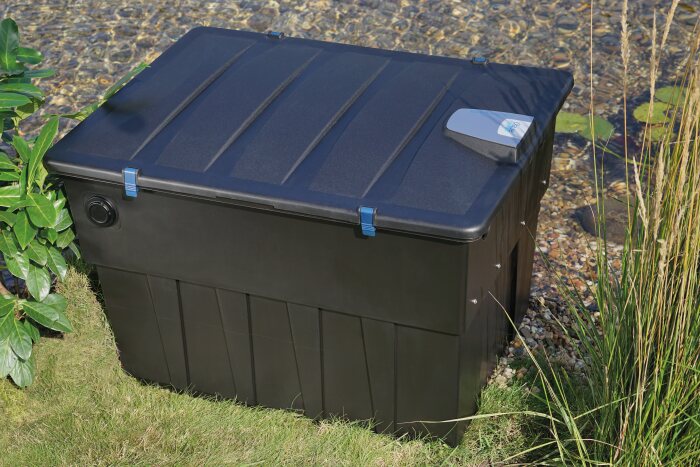

The OASE BioTec ScreenMatic² Set 60000 OC is a complete flow-through pond filtration system supplied with a matched pump and automatic ScreenMatic debris separation.
Designed for large garden ponds, it removes coarse waste before the biological stage, reducing maintenance and supporting strong, consistent filtration performance. A high-capacity, all-in-one solution for clear and balanced pond water.
Original price was: £2,599.99.£1,899.99Current price is: £1,899.99.
Product Description
OASE BioTec ScreenMatic² Set 60000 OC
The OASE BioTec ScreenMatic² Set 60000 OC is a complete pump-fed pond filtration set. It combines the BioTec ScreenMatic² 60000 filter, AquaMax Eco Premium 17000 pump and Bitron C 55 W UV-C clarifier to bring mechanical filtration, biological filtration and UV-C clarification together in one system.

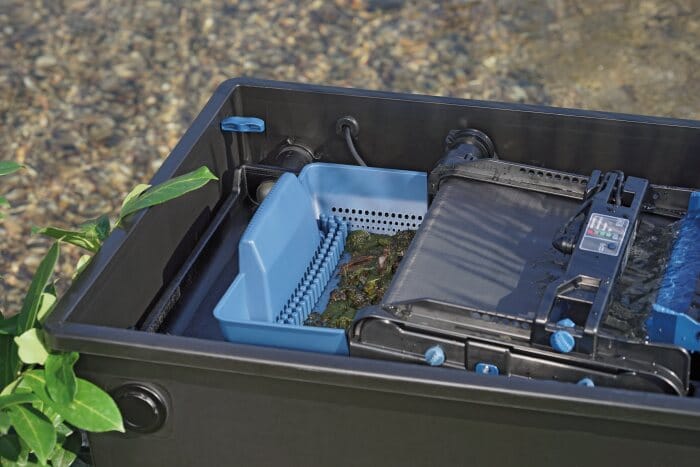

The filter uses an automatically driven ScreenMatic² belt to remove coarse debris before water passes through the filter media. A practical choice for larger garden ponds where you want a matched filter, pump and UV-C setup with straightforward routine maintenance.
Why It Is Useful
- Complete pump-fed filter, pump and UV-C clarifier set
- ScreenMatic² belt removes coarse debris before it reaches the filter foams
- 300-micron belt supports mechanical filtration
- Filter foams and filter granulate support biological filtration

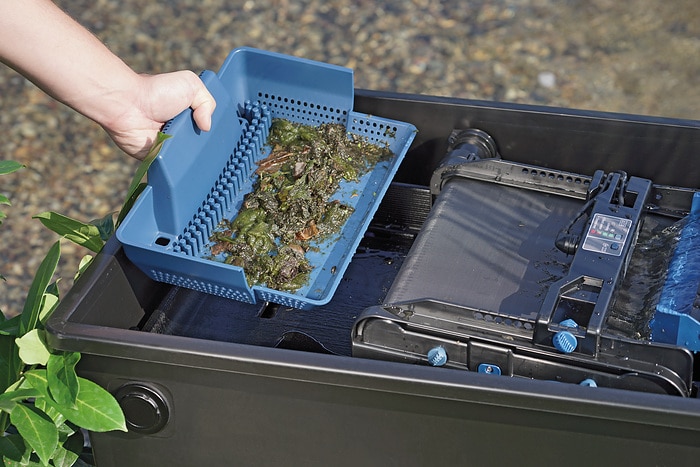

- Large debris basket keeps collected waste accessible

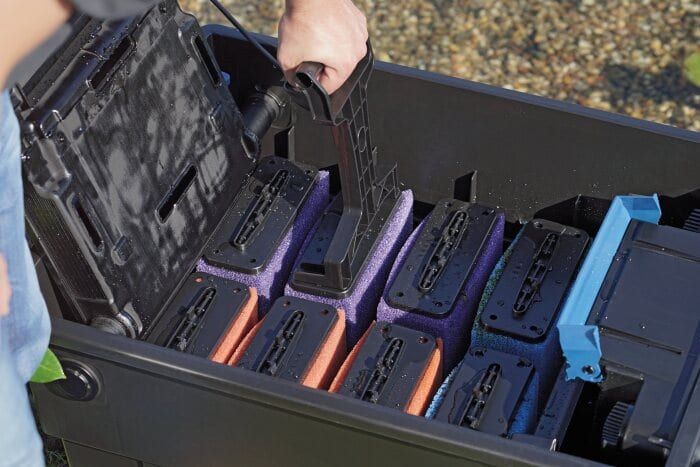

- Filter foams clean in place
- Bottom drain helps remove settled debris
- OASE Control compatibility allows optional system control with suitable accessories
Key Features

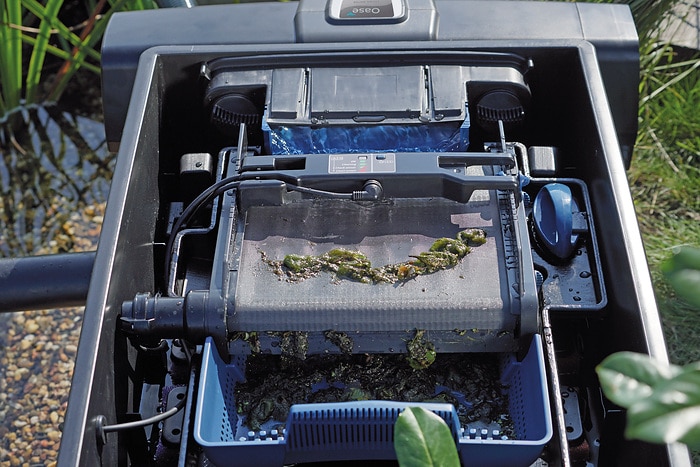

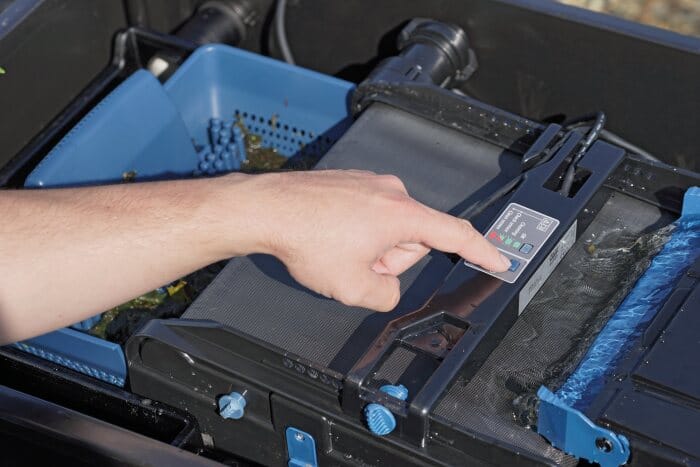

The automatically driven filter belt responds to the level of contamination, helping remove coarse waste from the water flow before it reaches the main filter media.
The included AquaMax Eco Premium 17000 pump moves water through the system, while the Bitron C 55 W UV-C clarifier forms part of the filtration route.
Specifications
| Specification | Details |
|---|---|
| Product | OASE BioTec ScreenMatic² Set 60000 OC |
| Product code | 74449 |
| System type | Pump-fed filtration set |
| Included filter | BioTec ScreenMatic² 60000 |
| Included pump | AquaMax Eco Premium 17000 |
| Included UV-C | Bitron C 55 W |
| Maximum flow rate | 11,000 lph |
| Coarse debris extraction | 300 µm |
| Filter foams | 8 |
| Blue filter foams | 2 |
| Red filter foams | 3 |
| Purple filter foams | 3 |
| Filter granulate | 3.5 kg |
| Filter inlet | 25 mm, 32 mm or 38 mm |
| UV-C inlet | 19 mm, 25 mm, 32 mm, 38 mm or 50 mm |
| Filter outlet | DN 75 |
| Sludge outlet | DN 50 |
| Filter dimensions | 788 x 590 x 545 mm |
| Filter weight | 36 kg |
| Filter power consumption | 5 W |
| UV-C power consumption | 55 W |
| Pump power consumption | 140 W |
| Pump cable length | 10 m |
| UV-C cable length | 5 m |
Fit And Compatibility
This is a pump-fed system. Plan the installation route before ordering fittings:
Pump → Bitron C 55 W UV-C → BioTec ScreenMatic² 60000 filter → pond return
Match the hose, pipework and fittings to the stated inlet and outlet sizes. The filter has 25 mm, 32 mm and 38 mm inlet options, with a DN 75 outlet and DN 50 sludge outlet.
The AquaMax Eco Premium 17000 is OASE Control compatible. Check the product specifications or contact MS Koi before ordering if you need to confirm compatible controllers, hose fittings or return pipework.
Installation And Maintenance
Position the filter where you can comfortably reach the debris basket, filter foams and sludge outlet.
Before switching on:
- Check all hose connections and clamps
- Confirm the return route to the pond is clear
- Make sure the sludge outlet is accessible
- Check that the pump and UV-C are installed in the correct direction
- Confirm valves are in the correct operating position

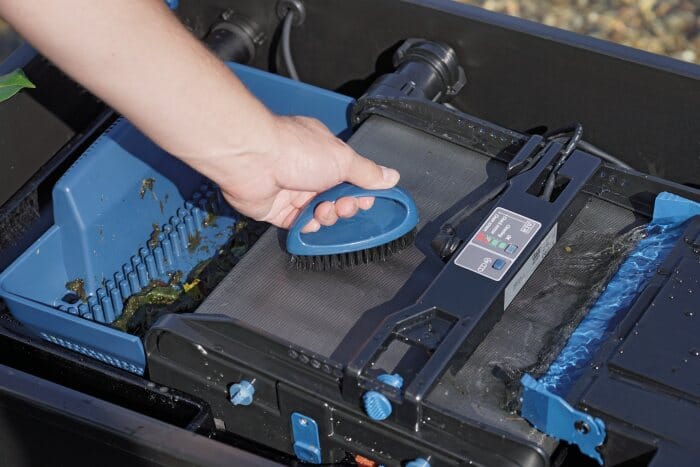

Empty the debris basket when required. Clean the filter foams in place and use the bottom drain to remove settled debris from the filter.
Safety Notes
Always isolate the pump and UV-C unit before maintenance. Never look directly at an operating UV-C lamp as UV-C light can harm eyes and skin. Follow the product instructions for installation, servicing and replacement parts.

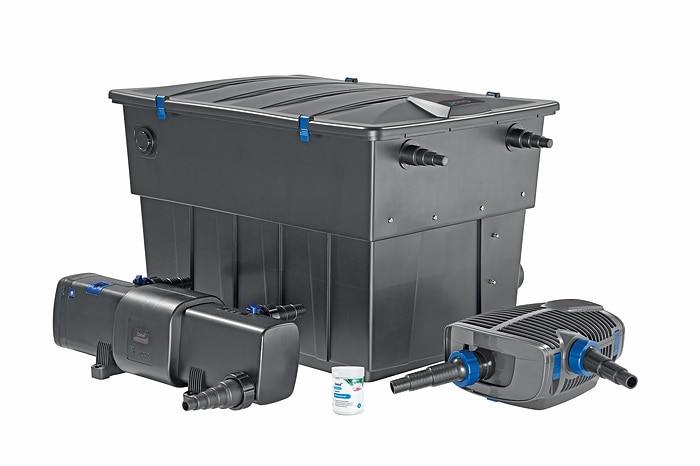

What Is Included
- OASE BioTec ScreenMatic² 60000 filter
- OASE AquaMax Eco Premium 17000 pump
- OASE Bitron C 55 W UV-C clarifier
Related Products
- Replacement filter foams for BioTec 60/140
- Pond hose and hose clips
- DN 75 outlet pipework
- DN 50 waste pipework
- Suitable hosetails and connectors
- OASE Control accessories
Choose fittings that match the pump outlet, UV-C connections and pond return route.
