BioTec ScreenMatic² Set 90000 OC
The OASE BioTec ScreenMatic² Set 90000 OC is a complete high-capacity pond filtration system supplied with a matched pump and automatic ScreenMatic debris separation.
Designed for very large garden ponds, it removes coarse waste before the biological stage, reducing manual cleaning and supporting consistent filtration performance at higher flow rates. A powerful, all-in-one solution for clear, balanced water in demanding setups.
Original price was: £3,569.99.£2,569.99Current price is: £2,569.99.
Product Description
OASE BioTec ScreenMatic² Set 90000 OC

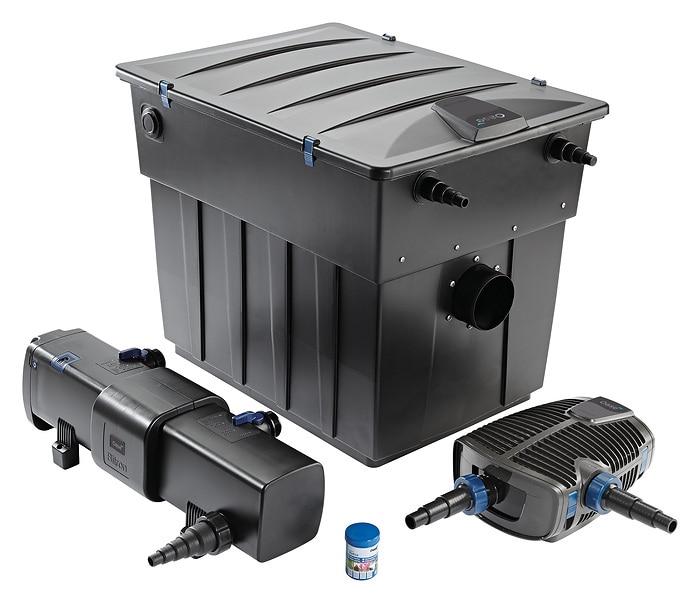

The OASE BioTec ScreenMatic² Set 90000 OC is a complete flow-through filtration set for larger garden ponds. It combines the BioTec ScreenMatic² 90000 filter, Bitron C 110 W UV-C clarifier and AquaMax Eco Premium 21000 pump to provide mechanical filtration, biological filtration and UV-C clarification in one matched system.

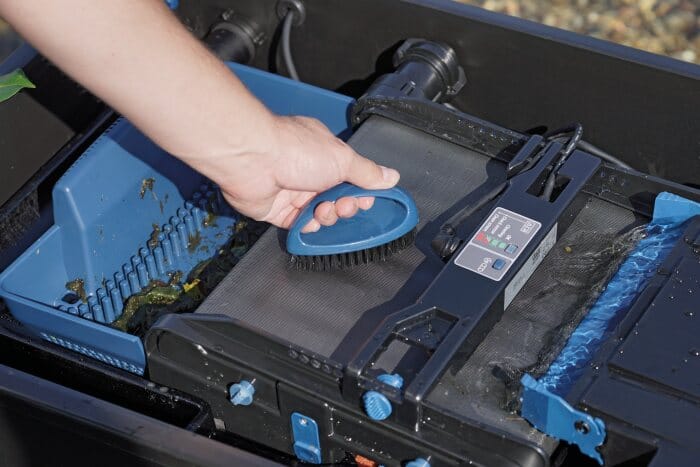

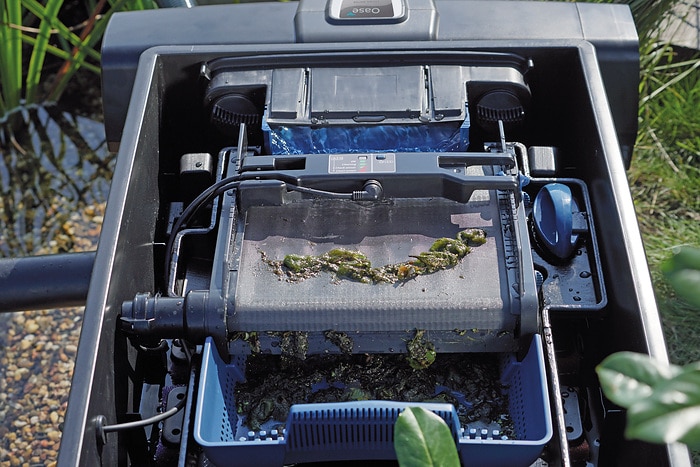

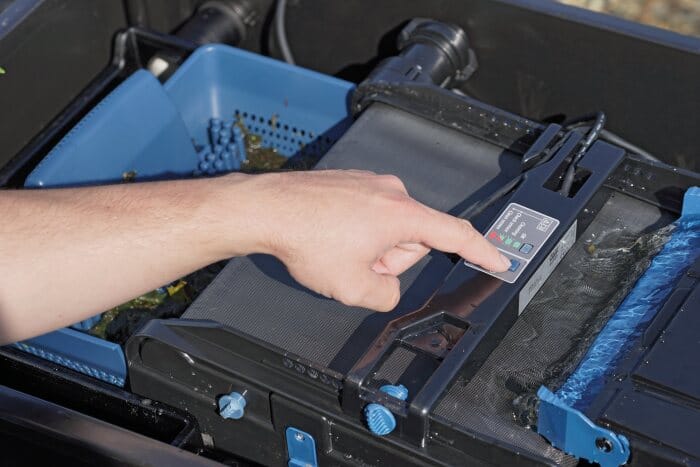

The filter uses an automatically driven ScreenMatic² belt to remove coarse debris before it reaches the filter media. Sensors monitor contamination and start the belt run when required, while the LED display highlights when cleaning is needed.
Key Features
- Complete OASE filter, pump and UV-C clarifier set
- Automatic coarse debris extraction using a 300-micron filter belt
- 16 filter foams in three grades for mechanical and biological filtration
- 5 kg special filter granulate

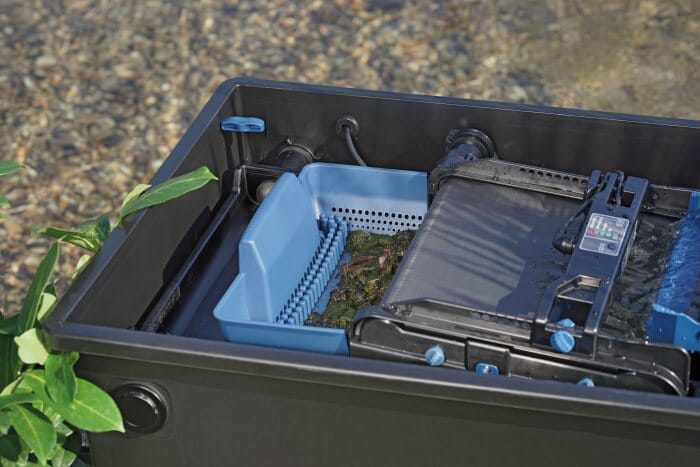

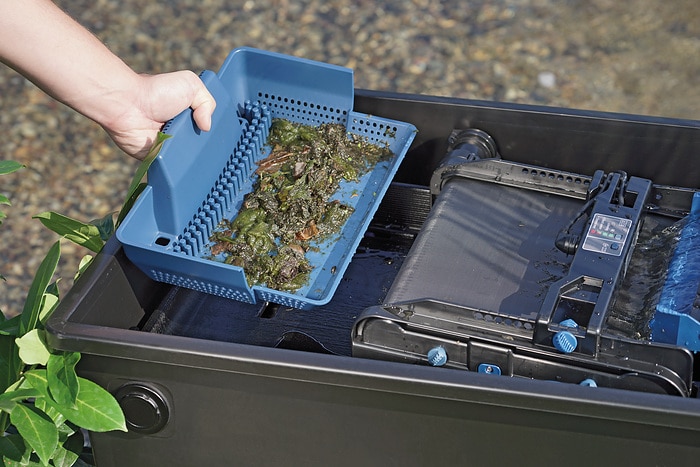

- Large debris basket for straightforward removal of collected waste
- Filter foams can be cleaned in place
- Bottom drain with slide for removing settled debris
- Direct connection option for OASE Bitron C and Eco UV-C clarifiers
- OASE Control functions require a Garden Controller Cloud or FM-Master Cloud, available separately
Specifications
| Specification | Details |
|---|---|
| Product | OASE BioTec ScreenMatic² Set 90000 OC |
| Included filter | BioTec ScreenMatic² 90000 |
| Included pump | AquaMax Eco Premium 21000 |
| Included UV-C | Bitron C 110 W |
| Maximum flow rate | 12,500 lph |
| Suitable pond volume | Up to 90 m³ |
| Suitable pond volume with fish | Up to 45 m³ |
| Suitable pond volume with koi | Up to 22.5 m³ |
| Filter dimensions | 788 x 590 x 645 mm |
| Filter weight | 42 kg |
| Coarse debris extraction | 300 µm |
| Filter foams | 16 total |
| Blue filter foams | 4 |
| Red filter foams | 6 |
| Purple filter foams | 6 |
| Special filter granulate | 5 kg |
| Filter inlet | 25, 32 or 38 mm |
| UV-C inlet | 19, 25, 32, 38 or 50 mm |
| Filter outlet | DN 75 |
| Sludge outlet | DN 50 |
| Pump power consumption | 180 W |
| UV-C power consumption | 110 W |
| Filter power consumption | 5 W |
| Pump cable length | 10 m |
| UV-C cable length | 5 m |
Fit And Compatibility
This is a pump-fed filter set. Confirm your pipe diameter, hose fittings and return route before installation.
The filter inlet accepts 25 mm, 32 mm and 38 mm hose connections. The included Bitron C 110 W UV-C unit accepts 19 mm, 25 mm, 32 mm, 38 mm and 50 mm connections. The filter uses a DN 75 outlet and DN 50 sludge discharge.
For OASE Control functions, add a compatible Garden Controller Cloud or FM-Master Cloud. These are required for app-based control and are not listed as part of the set.
Installation And Maintenance
Position the system so you can access the debris basket, filter foams and sludge outlet easily. Check the full pipe route and hose sizes before filling the system.

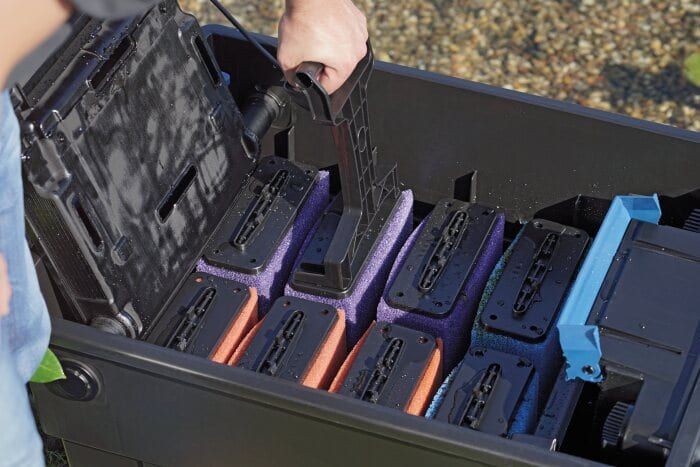

The filter belt runs automatically according to the detected contamination level. Empty the debris basket as needed, clean the filter foams in the unit and use the bottom drain to remove settled waste from the filter chamber.
