Oase Aquamax Eco Titanium 51000

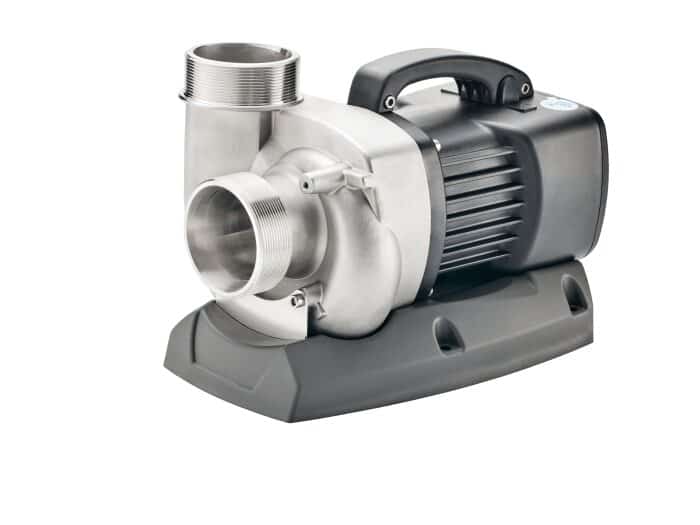

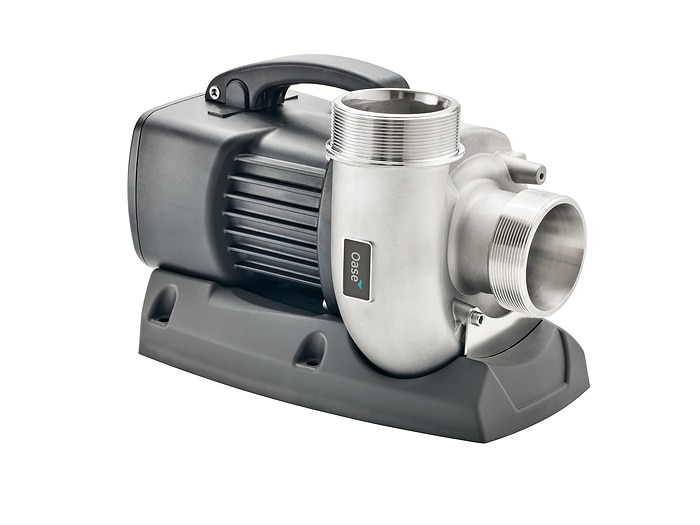

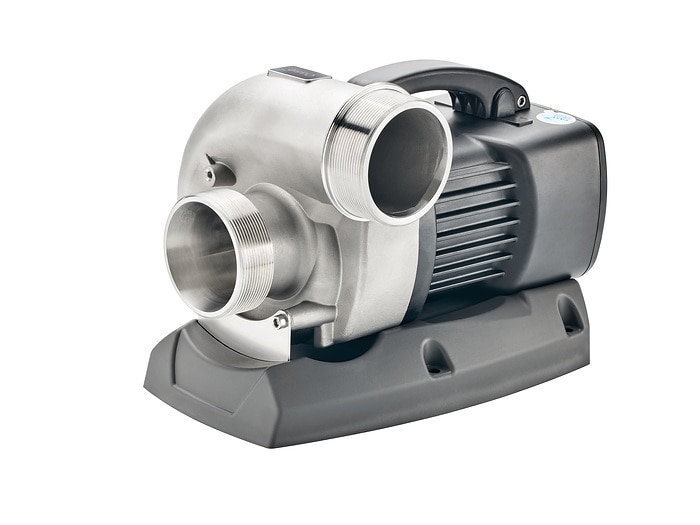

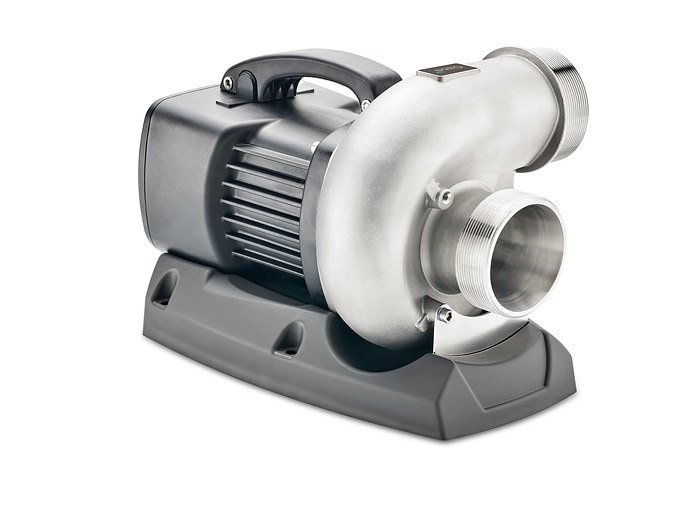

OASE AquaMax Eco Titanium 51000

The OASE AquaMax Eco Titanium 51000 is a high-capacity filter pump for large gravity-fed pond systems. It is designed for larger ponds with or without koi, moving pond water and coarse debris towards the mechanical filtration stage.

The pump features a cast stainless-steel housing with a rotor shaft and bearings made from SIC ceramic. It handles coarse debris up to 6 mm and includes automatic protection against dry running and blockage.

Key Features

• High-capacity pump for large gravity-fed filter systems
• Suitable for ponds with or without koi
• Cast stainless-steel pump housing
• SIC ceramic rotor shaft and bearings
• Moves coarse debris up to 6 mm
• Automatic dry-run and blockage protection
• Compatible with OASE Control equipment
• Suitable for use with larger filtration systems

Fit And Compatibility

The OASE AquaMax Eco Titanium 51000 suits large gravity-fed filtration setups where you need a pump to move filtered water through the return line.

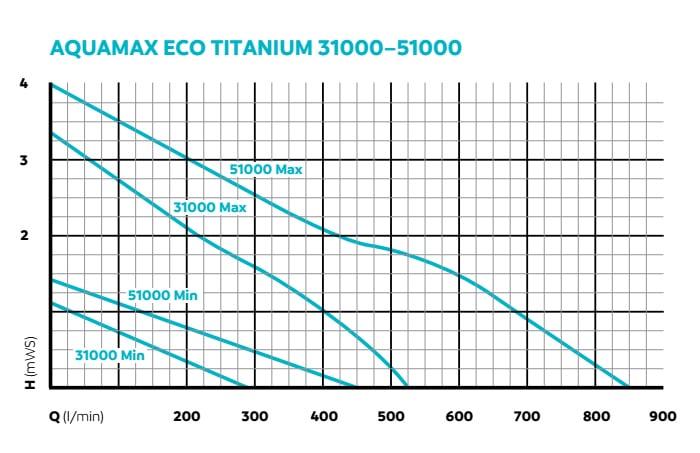

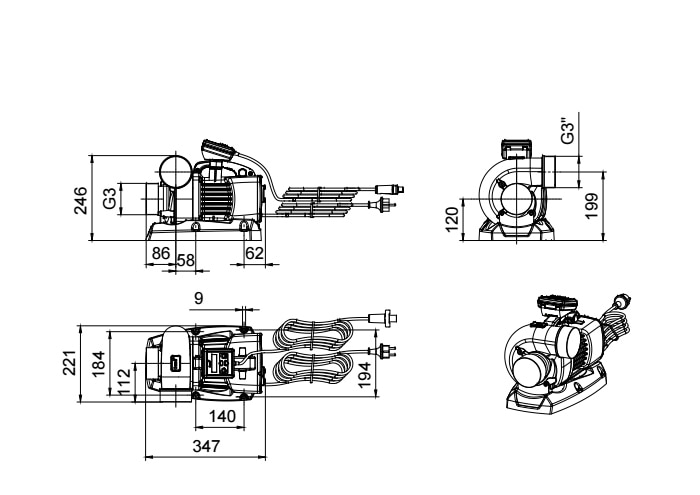

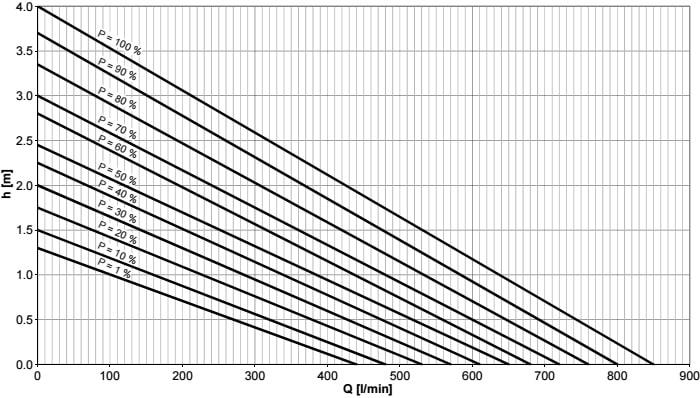

Check the pump’s connection sizes, working flow, head height and pipework requirements before ordering. Your pipe diameter, return height, bends, valves and connected equipment all affect the real flow delivered back to the pond.

The pump can be used with compatible OASE Control equipment where required. Follow the OASE instructions for the correct control connection and installation method.

Installation And Maintenance

Install the pump in line with the manufacturer instructions and leave clear access for maintenance. Check all pipework, unions and valves before switching on.

Always isolate electrical equipment before maintenance. Inspect the intake and pump housing regularly for debris, then clean the unit in line with the product instructions. Do not run the pump dry.

Specifications
