ProfiClear Premium Compact-L gravity OC

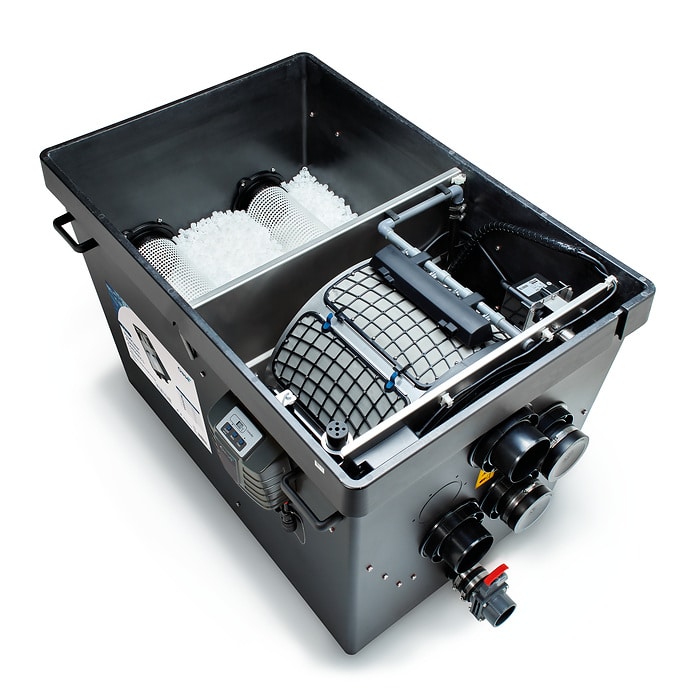

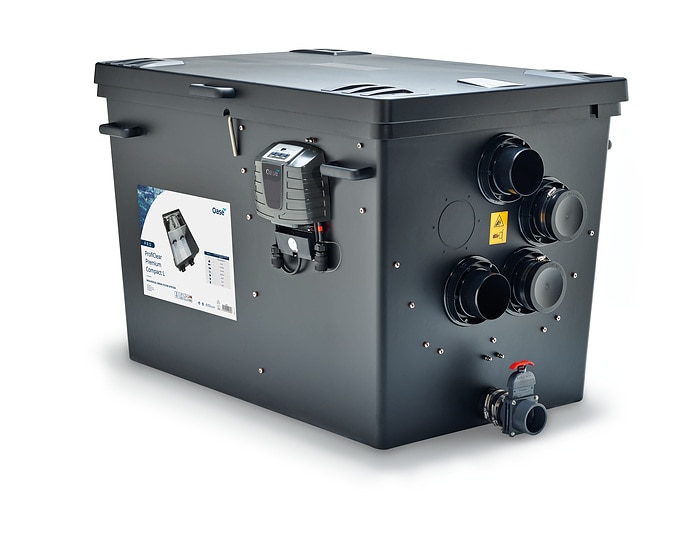

The OASE ProfiClear Premium Compact‑L Gravity OC is a high-capacity combi drum filter designed for gravity-fed koi pond systems.
It combines automatic drum-based mechanical separation with an integrated moving bed biological stage, delivering powerful, low-maintenance filtration in one compact unit. Ideal for larger or heavily stocked koi ponds where stable water quality is essential.
Original price was: £5,699.99.£4,699.99Current price is: £4,699.99.
Product Description
- Suitable for ponds up to 140.0 m3.
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit.
This innovative compact drum filter from the ProfiClear Premium range is the affordable alternative for small to medium-sized bodies of water. The compact modular filter system is particularly ideal for koi ponds up to 35 m³. Leading koi experts were consulted during the development of the series. Using the gravity principle, the maximum water flow rate of the filter is 25,000 litres per hour.
In this completely self-cleaning drum filter unit, the moving bed system ensures optimum water movement and cleaning. Professional Hel-X bacteria effectively break down nutrients and pollutants in the water. A depth filtration of up to 60 µm and a new Hel-X 13 filter medium with a significantly larger surface area ensure high separation efficiency. The lower installation height of the compact shape also allows gravity systems to be installed where space is limited.
Technical data
| Dimensions (L × W × H) | mm | 1370 × 891 × 815 |
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1050 |
| Cable length | m | 5.00 + 5.00 |
| Net weight | kg | 132.50 |
| Limited Warranty | Years | 2 + 1 |
| Biological filter surface | m2 | 57.3 |
| Biological filter surface protected | m2 | 48.4 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 4 × 2.5 l/min | |
| Scavenging pump | 6 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 3 |
| Inlet connections | DN 110 | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | AquaOxy 2500 | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 25000 |
| Installation height above water level | cm | 12.5 |
| Type of use | Gravity fed system | |
| Other | Aeration pre-installed incl. 60l Hel-X 13 Biomedia |
