ProfiClear Premium Compact-M gravity OC

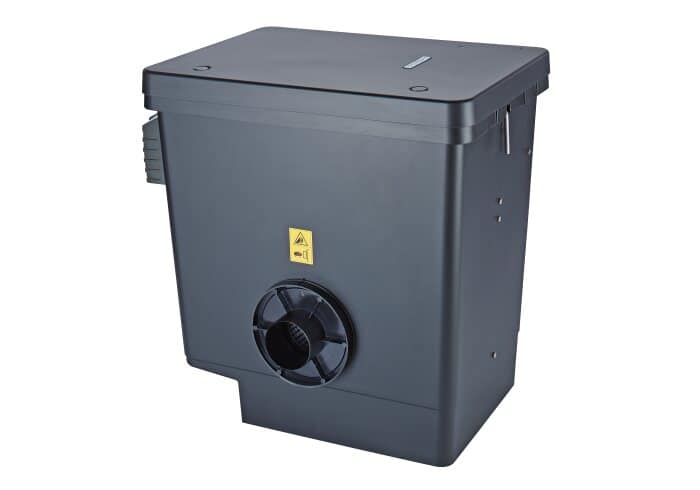

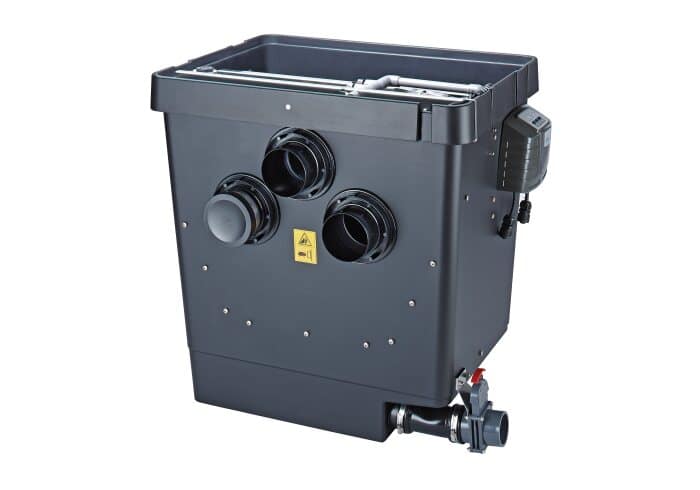

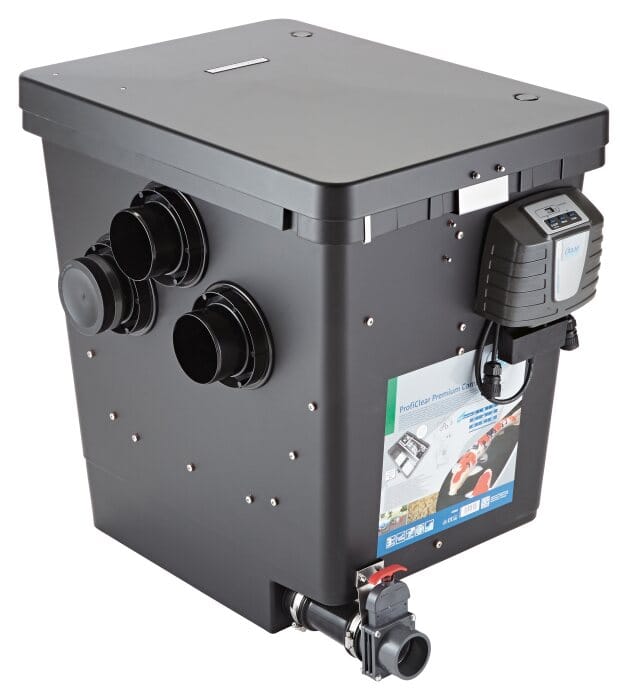

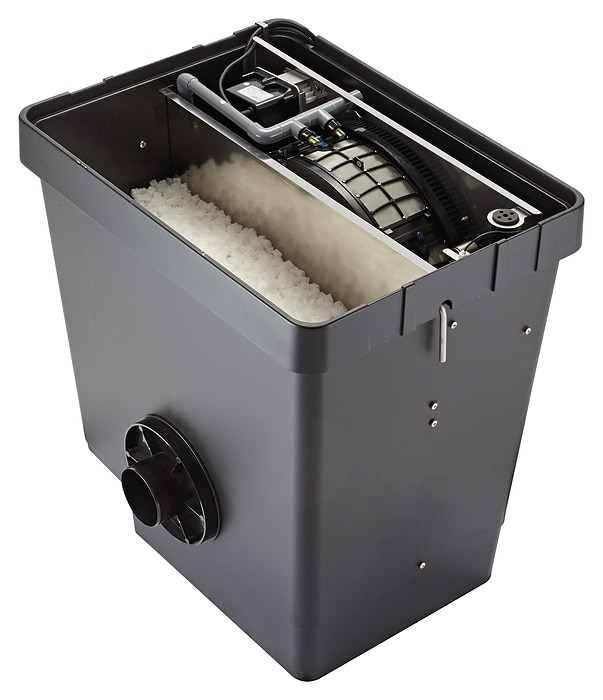

The OASE ProfiClear Premium Compact‑M Gravity OC is a compact combi drum filter designed for gravity-fed koi pond installations.

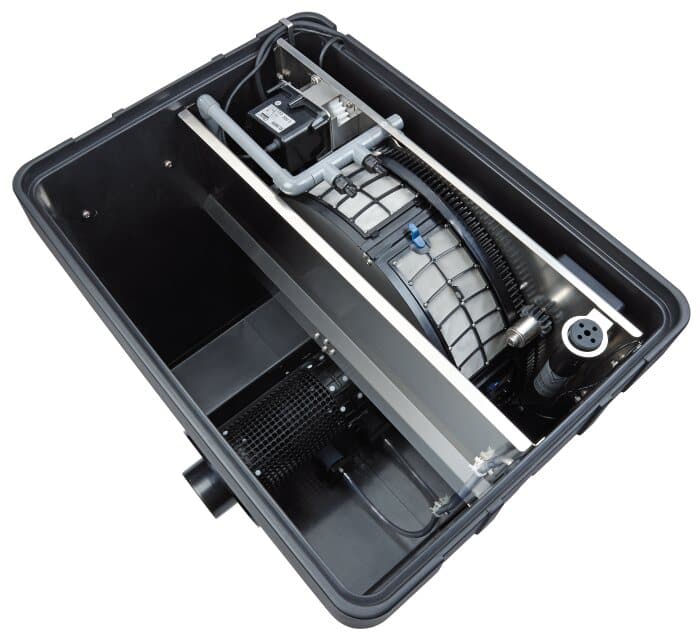

It features a self-cleaning 60‑micron drum screen for fine mechanical separation and an integrated moving bed biological stage with Hel‑X 13 media to support efficient waste breakdown. A powerful, space-efficient filtration solution for serious koi ponds.
Original price was: £3,559.99.£2,999.99Current price is: £2,999.99.
Product Description
- Suitable for ponds up to 88.0 m3.
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit.
- Inexpensive alternative for smaller ponds, particularly koi ponds.
- The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology.
- Available in the pump-fed principle and in the gravity-fed principle.
- Conveniently control all settings via an app with connection options for the OASE Control system.

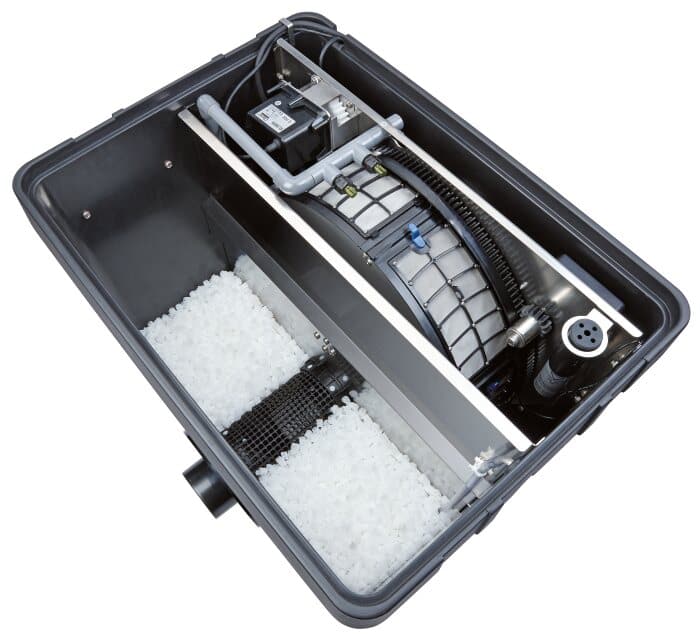

- With the Moving Bed System for optimal water movement and water cleaning.
- High separation efficiency due to deep filtration of up to 60 μm.
- Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants.
- Innovative and reliable product »made in Germany« (except pressure pump).
- The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required.
- Particularly quiet operation thanks to extensive noise insulation.
- Individually removable sieve elements (no tools required) and free-wheel function.
- Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum.
- Minimal install height for full flexibility with gravity-fed systems.
Technical data

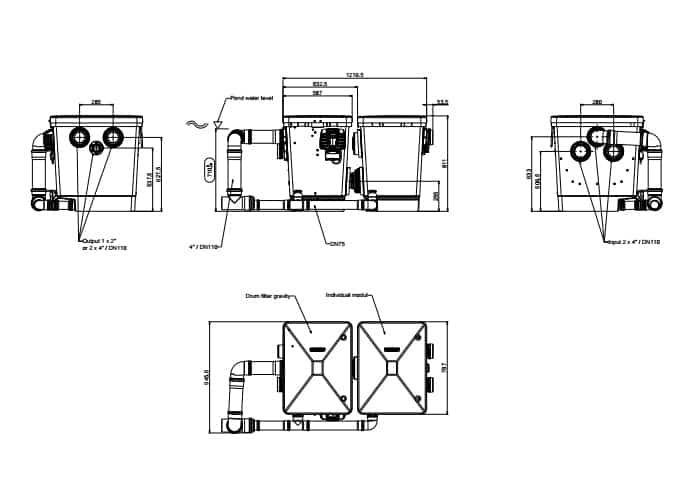

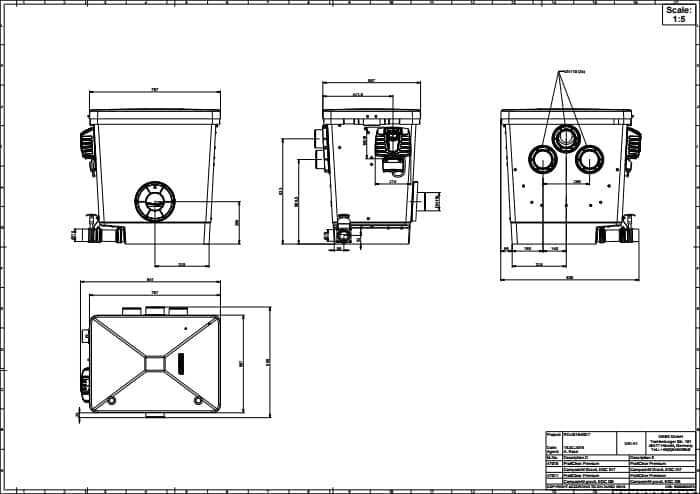

| Dimensions (L × W × H) | mm | 885 × 685 × 820 |
| Power consumption, cleaning | W | 670 |
| Net weight | kg | 83.50 |
| Limited Warranty | Years | 2 + 1 |
| Biological filter surface | m2 | 38.2 |
| Biological filter surface protected | m2 | 32.2 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 80 |
| Number of nozzles/rinse quantity | 2 × 3.5 l/min | |
| Scavenging pump | 4 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 6 |
| Filter intake surface | cm2 | 1135 |
| Number of inlets | Units | 2 |
| Inlet connections | DN 110 | |
| Number of outlets | Units | 1 |
| Outlet connections | DN 110 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |

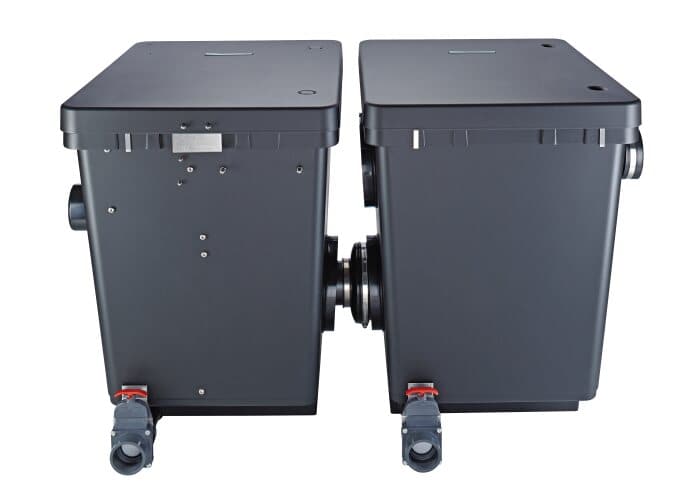

| Connection to | AquaOxy 2500, Bitron Premium, ProfiClear pump chamber Compact | |
| Min. flow rate | l/h | 7500 |
| Max. flow rate | l/h | 16500 |
| Installation height above water level | cm | 10.5 |
| Type of use | Gravity fed system | |
| Other | Aeration pre-installed incl. 40l Hel-X 13 Biomedia Pollutant discharge incl. slide valve |
