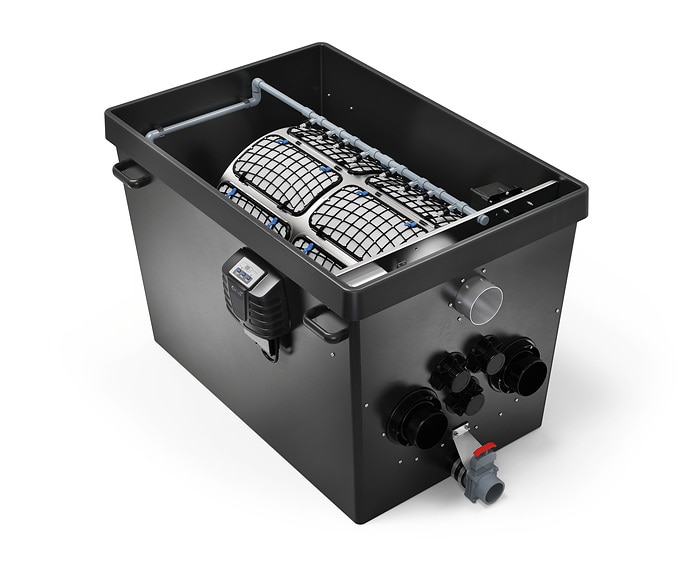

ProfiClear Premium DF-XL pump-fed OC
The OASE ProfiClear Premium DF‑XL Pump‑Fed OC is a high-capacity automatic drum filter designed for large, pump-fed koi pond installations.
With a 60‑micron drum screen for fine mechanical separation, it removes solid waste before it can break down and affect water quality. Built for demanding, heavily stocked systems, it delivers powerful, low-maintenance performance as part of a modular ProfiClear Premium setup.
Original price was: £7,199.99.£5,999.99Current price is: £5,999.99.
Product Description
Large koi ponds generate serious waste. If solids aren’t removed quickly, they break down and place constant strain on your biological filter. The OASE ProfiClear Premium DF‑XL Pump‑Fed OC is a high-capacity automatic drum filter designed to handle demanding, pump-fed koi pond systems.
Built for professional installations, it delivers fine mechanical separation before waste can impact water quality.
Key Features
- 60‑micron stainless steel drum screen
- Fully automatic self-cleaning operation
- Designed for high flow rates

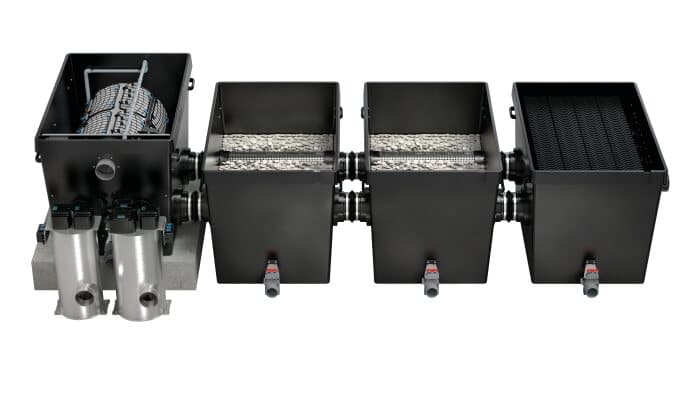

- Modular integration with ProfiClear Premium biological stages
- Heavy-duty construction for large pond systems

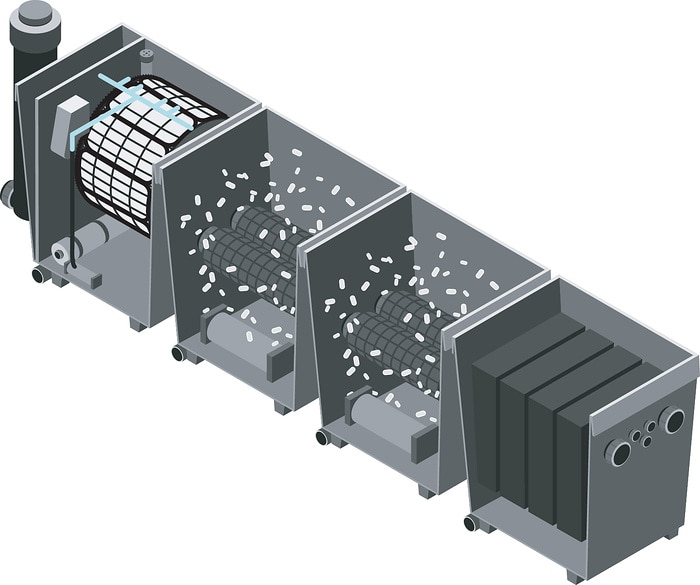

This unit provides dedicated mechanical filtration, forming the first and most critical stage of a modular setup.
How It Works
Mechanical Separation
Water enters the rotating drum where the 60‑micron screen captures fine solids.
As debris builds on the screen, sensors activate an automatic rinse cycle. The drum rotates while spray nozzles flush waste into a discharge outlet.
Removing solids early means:
- Less organic breakdown
- Reduced load on biological media
- More stable long-term water quality
Installation
This is a pump-fed drum filter and should be positioned after the pump.

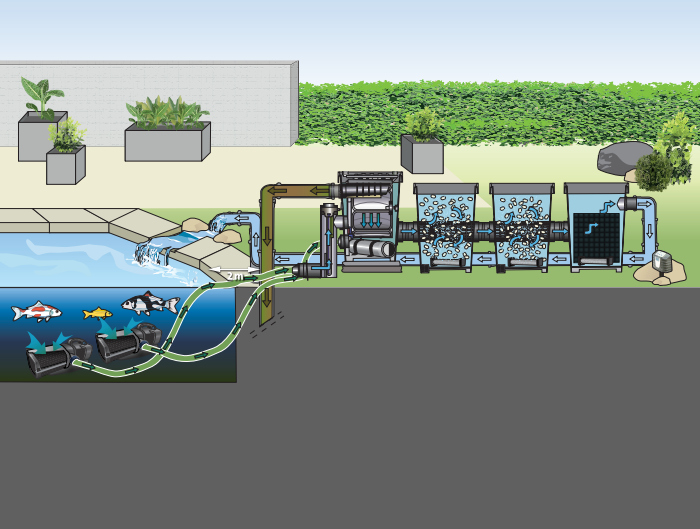

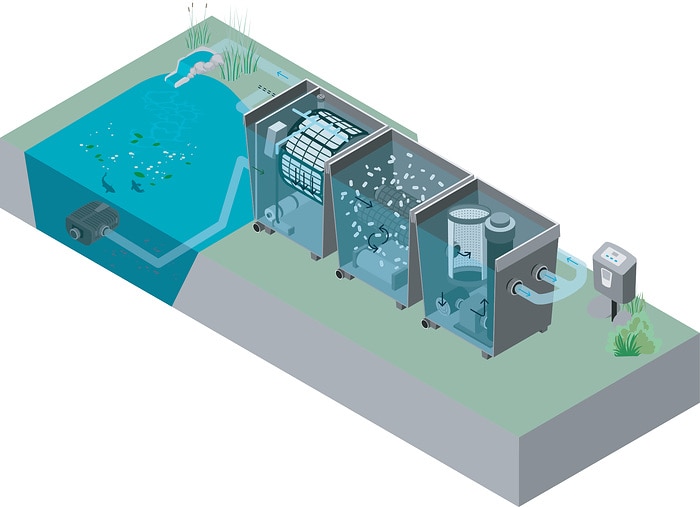

Typical layout:
Pump → DF‑XL Drum Filter → Biological Module(s) → Return to pond
A suitable waste outlet is required for the automatic cleaning discharge. Always confirm your system design – pump-fed vs gravity-fed – before installation.
Maintenance
- Cleaning cycles are automatic
- Inspect spray bar and drum screen periodically
- Ensure waste discharge line remains clear
- Isolate power before servicing
Routine checks keep the system performing at its best.
Who It’s For
- Very large koi ponds
- Heavily stocked systems
- Installations requiring automated mechanical filtration
- Keepers building high-performance modular systems
If you share your pond volume and pump flow rate, I’ll help confirm whether the DF‑XL Pump‑Fed OC suits your setup.
Technical data
| Dimensions (L × W × H) | mm | 1330 × 875 × 820 |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1600 |
| Net weight | kg | 128.50 |
| Limited Warranty | Years | 2 + 1 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 8 × 2.5 l/min | |
| Scavenging pump | 7 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 16 |
| Filter intake surface | cm2 | 6900 |
| Number of inlets | Units | 5 |
| Inlet connections | 3 × 2″ / 2 × DN 110 | |
| Number of outlets | Units | 2 |
| Outlet connections | 180 mm | |
| Sludge discharge connections | DN 75 | |
| Flush trough connection | DN 110 | |
| Connection to | Bitron Premium, ProfiClear Premium XL pump-fed drain module, ProfiClear Premium XL Moving Bed | |
| Min. flow rate | l/h | 25000 |
| Max. flow rate | l/h | 50000 |
| Installation height above water level | cm | 52.0 |
| Type of use | Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
