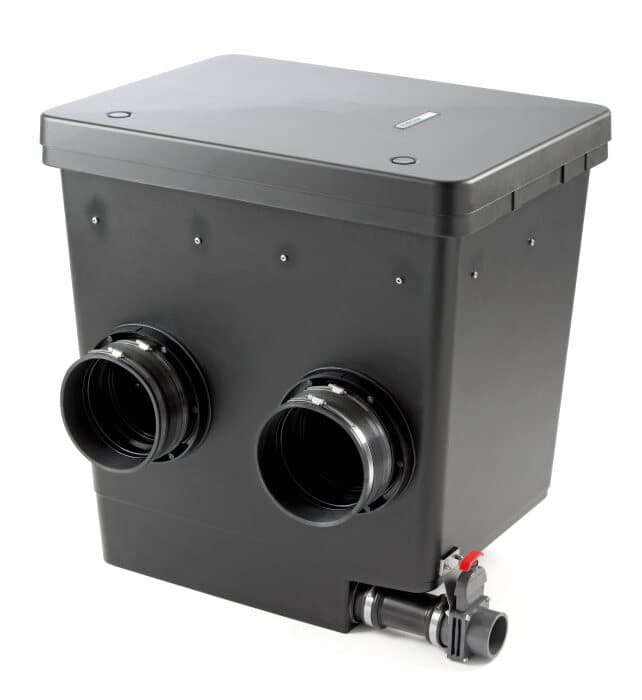

ProfiClear Premium Individual Module

When your koi grow and feeding increases, filtration demand rises fast. The OASE ProfiClear Premium Individual Module allows you to expand an existing ProfiClear Premium system without replacing the entire filter line.

It integrates directly with the ProfiClear Premium drum and moving bed modules and forms part of OASE’s modern modular filter system for professional water quality where space is limited .

Pond Volume & System Capacity

The ProfiClear Premium system features:

• Flow capacity up to 33 m³/h (system dependent)
• Filtration down to 60 µm
• Connection flexibility with up to 4 × DN 110 inlets

Within the wider ProfiClear Premium range, systems are designed for very large ponds – up to 530 m³, or 100 m³ for koi ponds, depending on configuration .

Because this is a modular component, total pond volume depends on:

• The number of drum and moving bed modules installed
• Overall biological media volume
• Pump flow rate
• Stocking level and feeding rate

For koi ponds, always size based on realistic maximum stocking and feeding, not just water volume.

Why Add an Individual Module?

• Expands an existing ProfiClear Premium modular system
• Designed for professional-level water quality
• Mature technology developed over more than three years
• Made in Germany – except pressure pump components
• Flexible modular layout for custom builds

As fish biomass increases, biological demand increases. Adding modules increases system volume and processing capacity without redesigning your pipework.

Biological Performance

The ProfiClear Premium Moving Bed technology provides:

• Highly effective decomposition of pollutants and nutrients
• Excellent breakdown of ammonium, ammonia, nitrite and nitrate
• Extremely large protected settlement surface for microorganisms – 806 m²/m³
• 50 l Hel-X media capable of decomposing approx. 340 g of fish food per day (extendable to 75 l per module)

This makes the Individual Module ideal in larger koi systems where stability and consistent nutrient processing are critical.

Installation & Compatibility

• Designed to integrate with ProfiClear Premium drum and moving bed modules
• Suitable for gravity-fed builds when paired with pump chambers
• Modular layout allows flexible positioning
• Only 11.5 cm installation height above water level required

When planning expansion, consider:

• Total pond volume
• Maximum system flow rate
• Number and size of koi
• Future growth and feeding increases

Oversizing biological capacity improves long-term stability and reduces seasonal stress on the system.

Maintenance & Operation

The ProfiClear Premium system features:

• Automatic self-cleaning drum technology
• Microcontroller-monitored operation suitable for outdoor use
• Individually removable sieve elements for easy access

For safe servicing:

• Isolate electrical supply before maintenance
• Inspect seals and slide valves regularly
• Confirm correct flow direction between modules

Professional filtration should grow with your pond. The OASE ProfiClear Premium Individual Module gives you scalable capacity, strong biological support and the flexibility serious koi systems demand.

Technical data
