ProfiClear pump chamber Compact/Classic
The OASE ProfiClear Pump Chamber Compact/Classic is a modular pump chamber designed to integrate with ProfiClear Compact and Classic filter systems
It provides a dedicated space to house your filter pump within a gravity-fed setup, keeping installation tidy and flow management controlled. Ideal for expanding or customising a modular ProfiClear system.
Original price was: £1,099.99.£899.99Current price is: £899.99.
Product Description
- High separation efficiency due to deep filtration of up to 60 μm.
- Maximum flexibility in the connection through 2 × DN110 and 2″ transitions.
- For integration in the ProfiClear Premium Compact and ProfiClear Classic gravity-fed systems.
- Reduction of pressure losses.
- Safe and standard conformant set-up at swim ponds.
- Easy maintenance and winter care.
- Protection against excessive silt.
- Debris that accumulates in the sediment tank is flushed out via the bottom drain.

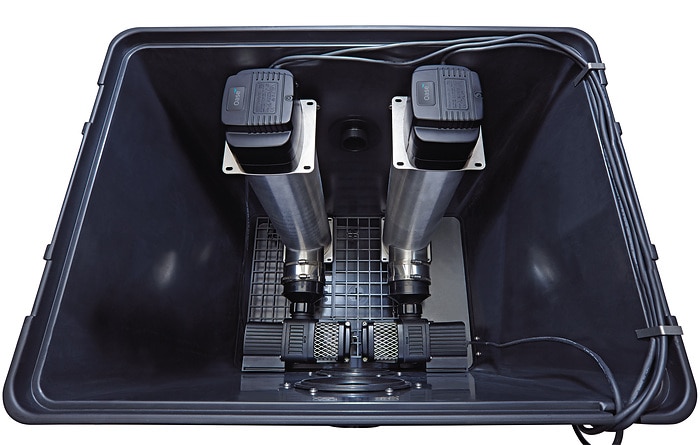

- Enables space-saving and energy-efficient integration of up to two AquaMax Eco Gravity and Bitron Gravity units.
- Maximum flexibility in the connection through DN 110 and 2″ container outlets.
- For integration in the ProfiClear Premium Compact and ProfiClear Classic gravity-fed systems.

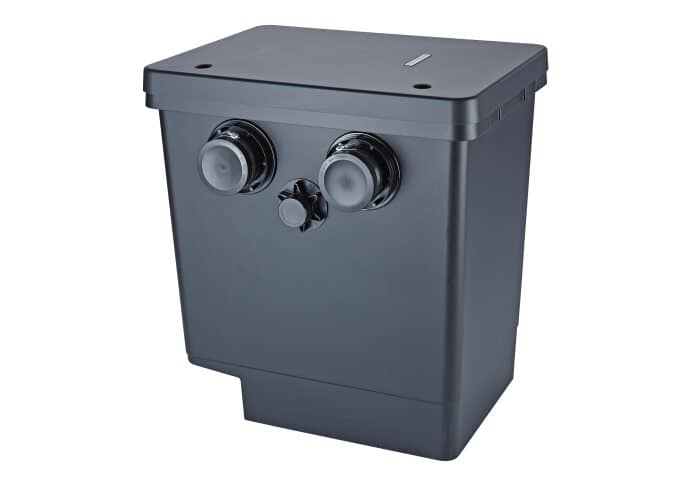

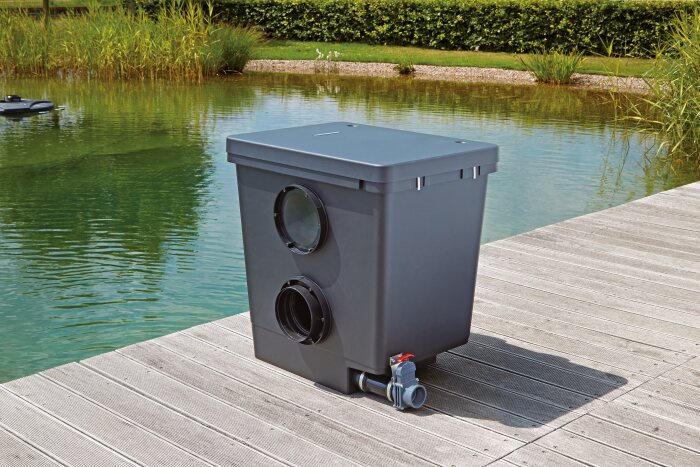

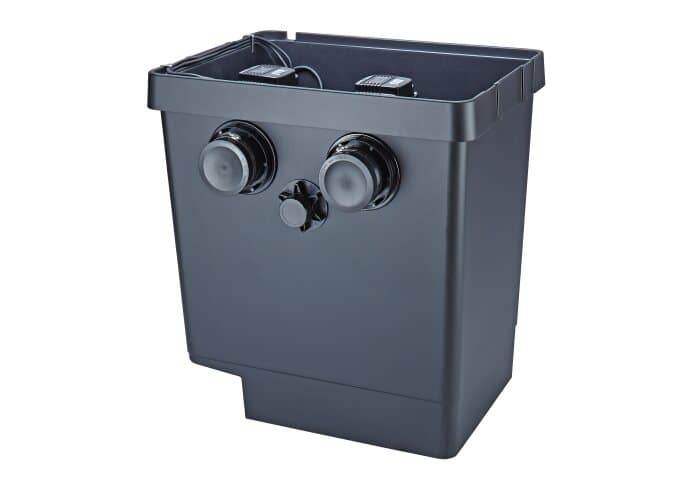

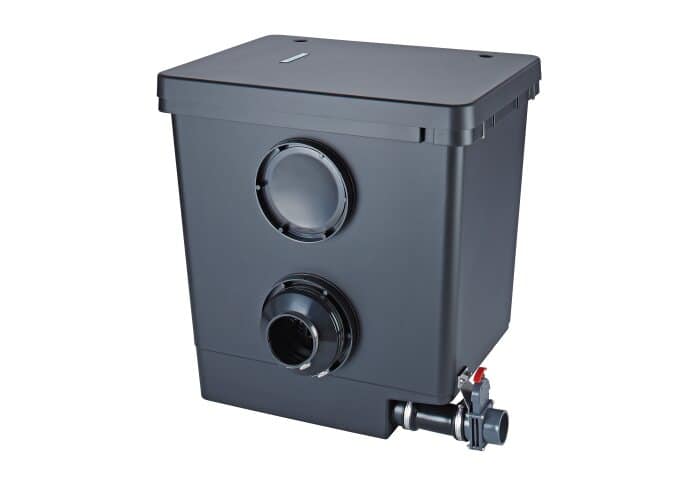

The ProfiClear Compact/Classic pump chamber is part of the ProfiClear modular filter system and can be used as a gravity version or for pumped systems (gravity feed line). It ensures the correct positioning of the filter feed pump. This reduces pressure losses, simplifies maintenance and winterisation of the pump and ensures standard-compliant installation in swimming ponds. A sedimentation chamber is located at the bottom of the module. Dirt collected in the sedimentation chamber is flushed out via the floor drain. The pump chamber has two inlets suitable for ProfiClear Classic and ProfiClear Premium Compact. 2x DN110 outlets allow the energy-saving use of up to 2 × Bitron Gravity UVC devices. The 83 × 67 × 82 cm (L × W × H) pump chamber module is made of high-quality duroplast.
Technical data
| Dimensions (L × W × H) | mm | 830 × 665 × 820 |
| Net weight | kg | 35.75 |
| Limited Warranty | Years | 2 + 1 |
| Number of sieve elements | Units | 2 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 2 |
| Inlet connections | 1 × DN 185 + 2 × DN 110 | |
| Number of outlets | Units | 3 |
| Outlet connections | 1 × 2″ / 2 × DN 110 | |
| Sludge discharge connections | DN 75 | |
| Connection to | AquaMax Eco Gravity, Bitron Gravity, ProfiClear Classic | |
| Max. flow rate | l/h | 25000 |
| Installation height above water level | cm | 10.5 |
| Type of use | Gravity fed system, Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
