ProfiClear Premium Compact-M pumped OC

Code: 47009

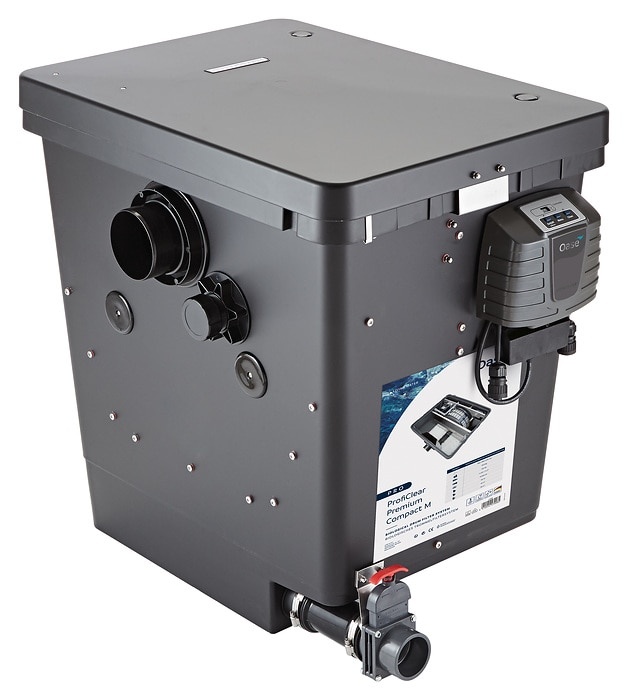

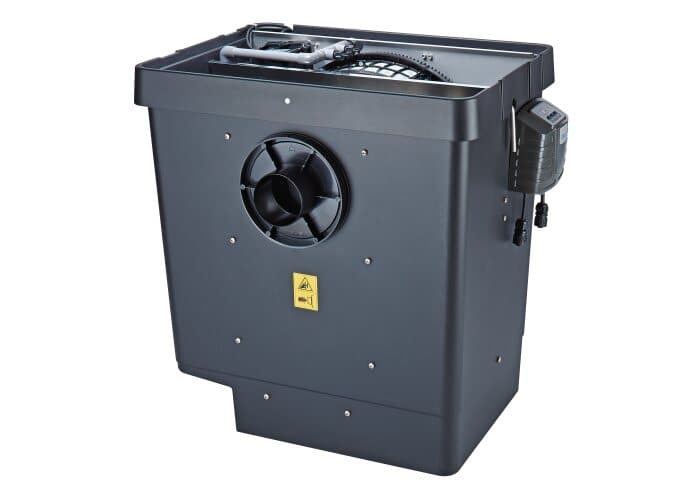

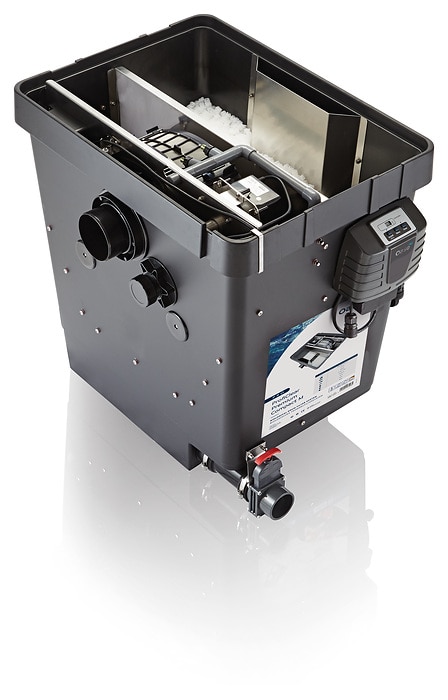

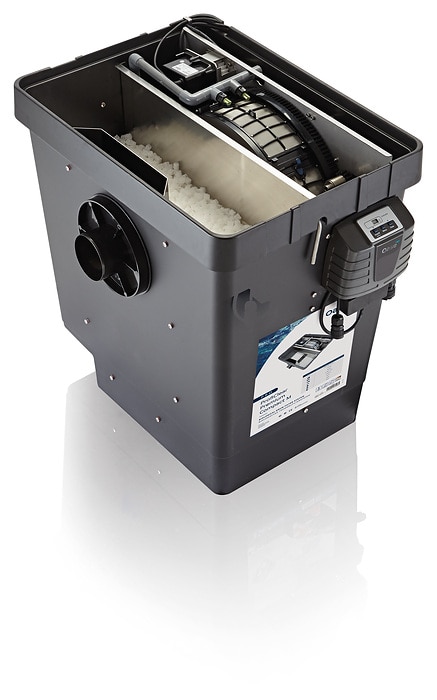

The OASE ProfiClear Premium Compact‑M Pumped OC is a compact combi drum filter designed for pump-fed koi pond systems.

Featuring a self-cleaning 60‑micron drum screen and integrated moving bed biological stage with Hel‑X 13 media, it removes fine solids before breaking down harmful waste. A space-efficient, automated filtration solution for serious koi keepers.

Original price was: £3,559.99.Current price is: £2,999.99.

Product Description

  • Suitable for ponds up to 80.0 m3.
  • Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit.
  • Inexpensive alternative for smaller ponds, particularly koi ponds.

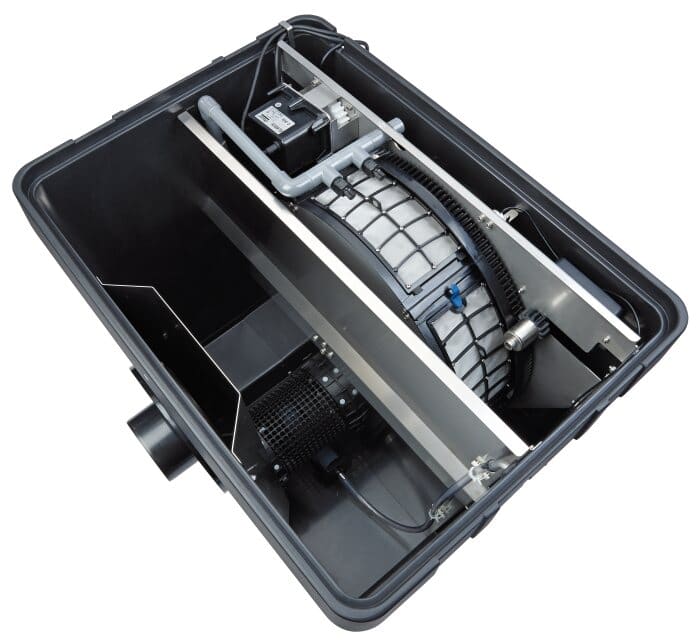

  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology.

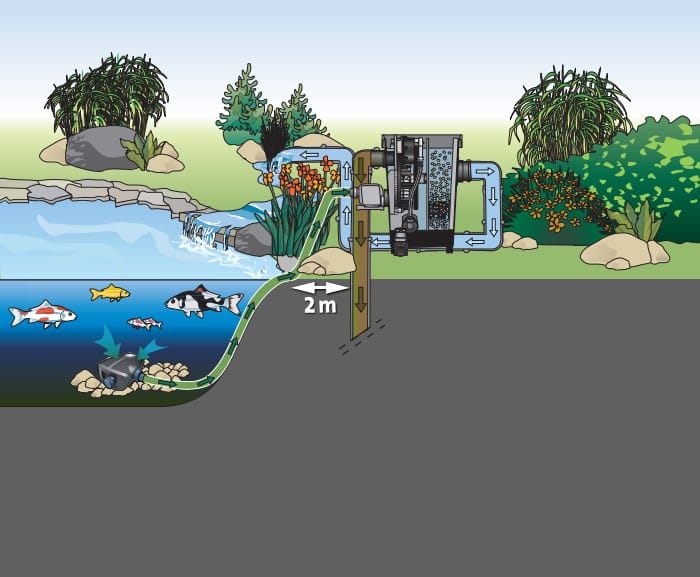

  • Available in the pump-fed principle and in the gravity-fed principle.
  • Conveniently control all settings via an app with connection options for the OASE Control system.

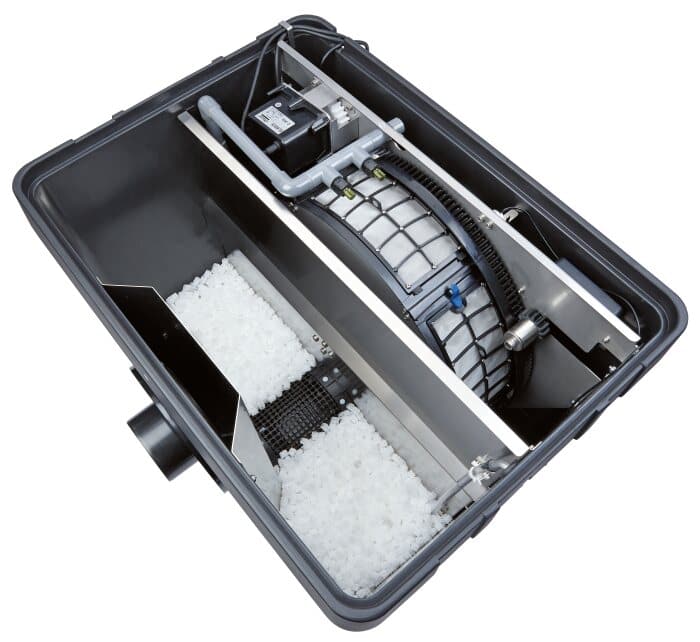

  • With the Moving Bed System for optimal water movement and water cleaning.
  • High separation efficiency due to deep filtration of up to 60 μm.
  • Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants.
  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required.
  • Innovative and reliable product »made in Germany« (except pressure pump).
  • Particularly quiet operation thanks to extensive noise insulation.
  • Individually removable sieve elements (no tools required) and free-wheel function.
  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum.
  • Minimal install height for full flexibility with gravity-fed systems.





This innovative compact drum filter from the ProfiClear Premium series is the affordable alternative for small to medium-sized bodies of water. The compact modular filter system is ideal for koi ponds in particular. Leading koi experts were consulted during the development of the series. In the pumped principle, the maximum water flow rate of the filter is 12,500 litres per hour. In this completely self-cleaning drum filter unit, the moving bed system ensures optimum water movement and cleaning. Professional Hel-X biomedia effectively break down nutrients and pollutants in the water. A depth filtration of up to 60 µm and a new Hel-X 13 filter medium with a significantly larger surface area ensure high separation efficiency.





Technical data

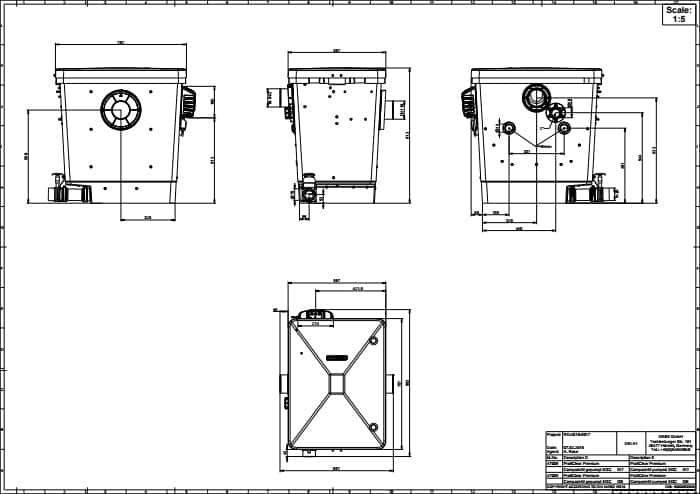

Dimensions (L × W × H) mm 885 × 685 × 820
Power consumption, cleaning W 870
Net weight kg 83.50
Limited Warranty Years 2 + 1
Biological filter surface m2 38.2
Biological filter surface protected m2 32.2
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction µm 80
Number of nozzles/rinse quantity 2 × 3.5 l/min
Scavenging pump 4 bar
Automatic rinsing system manually, Sensor, Time interval
Number of sieve elements Units 6
Filter intake surface cm2 1135
Number of inlets Units 2
Inlet connections mm 50
Inlet connections 1 × 2″ + Bitron
Number of outlets Units 1
Outlet connections DN 110
Sludge discharge connections DN 75, DN 110
Flush trough connection DN 110
Connection to AquaOxy 2500, Bitron C 72 – 110 W, Bitron Eco 120 – 240 W
Min. flow rate l/h 7500
Max. flow rate l/h 12500
Installation height above water level cm 32.0
Type of use Pump fed system
Other Aeration pre-installed
incl. 40l Hel-X 13 Biomedia

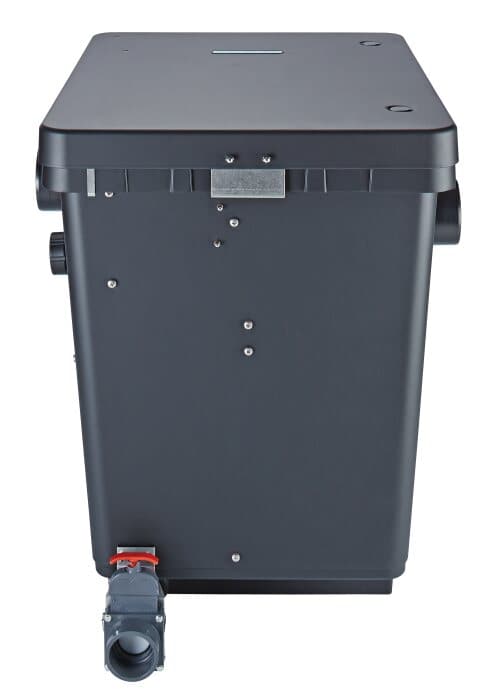

Pollutant discharge incl. slide valve
